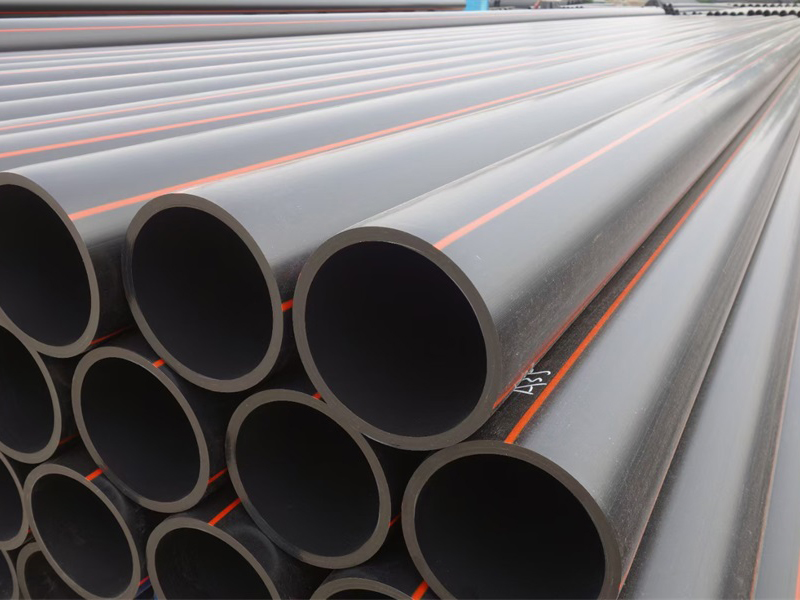

HDPE gas pipe introduction:

HDPE (High-Density Polyethylene) gas pipes are widely used in the transportation of natural gas and other combustible gases. These pipes are made from the thermoplastic material HDPE, which is known for its exceptional durability, flexibility, and resistance to corrosion.

1.Raw material introduction:

HDPE is a type of plastic made from petroleum. It is a strong, lightweight, and flexible material with high impact resistance. The raw material is mixed with various additives and then melted and extruded to form the gas pipes.

2. Performances:

HDPE gas pipes offer numerous advantages due to their material properties. Some key performances include:

- Corrosion resistant: HDPE pipes have excellent resistance to corrosion caused by chemicals, soil, and other environmental factors.

- Flexible and lightweight: HDPE pipes are highly flexible, allowing for easy installation in various terrains. Their lightweight nature reduces transportation and installation costs.

- High impact strength: HDPE pipes can withstand high impact forces and provide excellent resistance against cracks and fractures.

- Longevity: HDPE gas pipes have a long service life of more than 50 years, significantly reducing maintenance and replacement costs.

- Leak-free joints: HDPE pipes have fusion-welded joints, eliminating the risk of leakage.

3. Advantages:

HDPE gas pipes have several advantages over traditional metal pipes, including:

- Cost-effective: HDPE pipes offer cost savings during installation, transportation, and maintenance, making them a cost-effective solution.

- Improved safety: The pipes are resistant to damage from external factors like earthquakes or ground movement, enhancing the overall safety of gas distribution systems.

- Environmentally friendly: HDPE pipes are recyclable, reducing their ecological impact. They can also be manufactured from recycled HDPE material.

- Enhanced flow characteristics: HDPE pipes have a smooth inner surface that promotes efficient gas flow, reducing pressure drops.

4. Sizes:

HDPE gas pipes are available in various sizes ranging from small diameter pipes used for household gas connections to large diameter pipes used for transmission and distribution networks. Common sizes include 20mm, 32mm, 63mm, 110mm, 160mm, and larger.

5. Project cases:

HDPE gas pipes have been widely used in various projects worldwide. Some notable project cases include:

- Gas distribution networks in residential areas

- Underground gas transportation pipelines

- Industrial gas supply systems

- Liquefied natural gas (LNG) terminals and facilities

Overall, HDPE gas pipes offer a reliable and efficient solution for the transportation of natural gas, ensuring safe and efficient gas distribution systems.

HDPE gas pipe specifications

Available Color: Yellow, Black or black with red or yellow strips
